SOFTGEL FORMULATIONS – Lipid-Based Drug Delivery System to Bring Poorly Soluble Drugs to Market


Gone are the days when creating a new oral drug dosage form was simply a case of mixing the active pharmaceutical ingredient (API) with a suitable excipient and manufacturing. The number of drugs in the development pipeline for which this is likely to be a successful strategy is limited. A growing number of investigational molecules have poor solubility, poor permeability, or both, rendering a simple tablet or powder in a capsule suboptimal in terms of delivering the drug to the patient in a predictable, reproducible, and effective fashion. This is a particular issue with many of the modern targeted cancer medicines. For example, tyrosine kinase inhibitors, while often given orally, frequently exhibit a significant food effect that can greatly impact their absorption.1

The Biopharmaceutics Classification System (BCS) can be used to categorize APIs according to their dose, solubility, and permeability. Those APIs amenable to simple tableting or powder in a capsule are likely to fall into Class I: molecules that are both soluble at their administered dose and permeable, whereas those that are neither soluble at a given dose nor permeable fall into Class IV. A large number of modern drugs – including most tyrosine kinase inhibitors – fall into Class II, having low solubility at the given dose but high permeability. Drugs that have poor permeability properties but readily dissolve represent BCS Class III compounds. While this system represents a good way of identifying those compounds that may be good candidates for biowaivers based on in vitro dissolution data and serves as an aid for regulators in this regard, the system is not particularly useful for formulators and determination of suitable formulation approaches based on the properties of the compound. Specifically, it does not give sufficient insight into the solubility behavior of molecules in BCS Class II, where so many problematic compounds lie. Yet about two-thirds of compounds in the current development pipeline fall into Class II, with the likelihood of poor bioavailability, variable pharmacokinetics, and the distinct possibility of significant food effects. This not only puts patients at additional risk of developing toxicity-related side-effects, but leads to complicated dosing regimens and patient compliance issues.

As a result, a Developability Classification System (DCS) has been created.2 This splits BCS Class II into two subclassifications, providing an additional level of insight into a molecule’s solubility properties. The aim of the DCS is to direct thinking toward the right formulation strategy more quickly by facilitating the selection of technology in a rational way.

DCS Class IIa represents those drugs where absorption is limited by the dissolution rate, while for those in Class IIb, the absorption is limited by the drug’s intrinsic solubility. The DCS incorporates the concept of a solubility-limited absorbable dose, or SLAD, which represents the dose above which absorption of a compound is limited by its solubility. Above the SLAD, simply reducing the particle size to speed up dissolution is unlikely to be successful in improving the compound’s exposure.

Particle size reduction, solid amorphous dispersions, and lipid-based formulations represent approaches to address the problems posed by Class II compounds, depending on whether the compounds are dissolution-rate limited or solubility limited.3   Particle size is commonly reduced using milling, micronization, or comicronization techniques, and can be appropriate for Class IIa, where dissolution rate is at the root of the problem.

For Class IIb, where intrinsic solubility is the issue, successful strategies are likely to involve presenting the drug to the gastrointestinal system in a form in which it has already been solubilized. A solid dispersion technique such as hot melt extrusion can achieve this, as can formulation in a lipid-based drug delivery system (LBDDS).

A proper screening strategy is essential if the best formulation approach is to be selected at the outset. A number of in silico prediction tools are available that can steer the formulator toward one technology or another, but there remains no substitute for laboratory screening experiments. If these are carried out at an early stage, in a parallel fashion, rather than taking a “fit-for-purpose” approach when the project enters Phase II trials, the potential to accelerate development is significant. Efficacy and safety concerns can also be addressed at the outset.

Lipid-based systems are a proven technology for enhancing bioavailability, and the mechanisms via which lipid formulations enhance bioavailability have been comprehensively studied.4,5 Difficult Class IIa and IIb compounds can often be formulated into effective oral dosage forms using lipid-filled soft capsules and are in widespread use being manufactured on a commercial scale for both medicines and consumer health products.

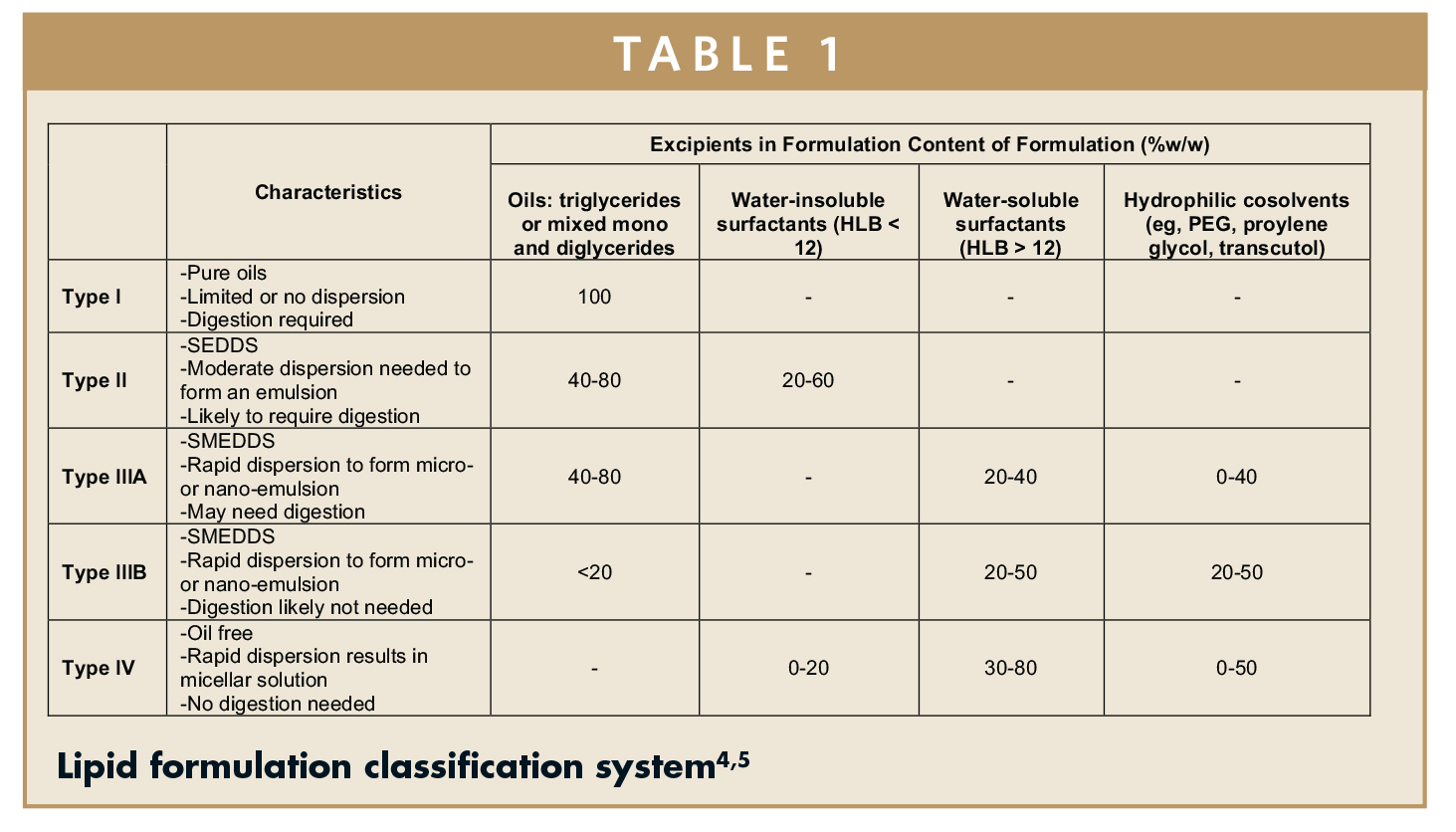

Once it has been established that a lipid-based strategy is likely to be successful, the next step is to determine which excipients or combination of excipients are best suited for a robust lipid-based formulation containing the compound that will result in enhanced bioavailability based on in vitro data generated. The lipid formulation classification system (LFCS) was proposed in 2006, initially classifying lipid-based formulations into four different categories (Type I – IIIB), with a fifth category (Type IV), being added a year later (Table 1).4,5 The formulations are assigned to a category based on the types and amounts of excipients, and predicted behavior (characteristics) in vivo. Type I lipid formulations are pure oils and require digestion whereas Type IV lipid formulation do not contain oils and rapidly disperse into micelles.

It is possible for an expert in formulation to speed the path to market further by incorporating the principles of Quality by Design (QbD) at the preformulation stage, ensuring that the critical formulation and process parameters determined in laboratory studies are addressed adequately during product development. Examples of the parameters that might be included in the QbD process at the preformulation stage are: screening for solubility in excipients, biorelevant media, and lipid digestion products; excipient compatibility; API degradation; and the risk of precipitation upon dispersion and digestion.

Soft capsules are the ideal platform for delivering lipid-based systems for a number of reasons. First, most lipid-based formulations are either liquids, or semi-solids that have low melting points and are not amenable to development as solid dose forms. Also, the shell, or gel mass, is compatible with a wide range of lipid excipients, regardless of whether they are very lipophilic, hydrophilic, or even amphiphilic. If formulated correctly, the shell has little effect on the lipid fill and its intended performance properties in vivo. The lack of headspace and hermetic seal provides protection against atmospheric oxygen that may lead to degradation of APIs sensitive to oxidation. Properly designed shells rupture rapidly and then dissolve quickly in the gastrointestinal fluid, releasing the API in the lipid fill formulation and ensuring it remains solubilized throughout.

The vast experience gained over the years in the formulation of lipid-based systems and the selection of a suitable shell, or gel mass, has demonstrated the versatility of the technology to meet a range of target product profiles with multiple product attributes. For example, the immediate release of a lipid-based fill that is engineered to spontaneously disperse, forming a very fine, thermodynamically stable emulsion can potentially improve absorption and reduce patient variability.

More recently, plant-based soft capsules have been developed containing polysaccharides in place of gelatin in the shell. These have found application both in the vegetarian, animal-free dietary supplements market, and the pharmaceuticals arena. Because the shell material is stable at higher temperatures than conventional gelatin-based shells, semi-solids and highly viscous liquids can now be heated so they are flowable on encapsulation machines and capable of being hot filled into soft capsules. As a result, fills that form semi-solid matrices at room temperature can be encapsulated in soft capsules and utilized to provide controlled release delivery of APIs.6 It should be noted that film coated soft capsules have also been successfully employed as a means of controlling or targeting the release of APIs with a number of examples cited in the literature.7-9

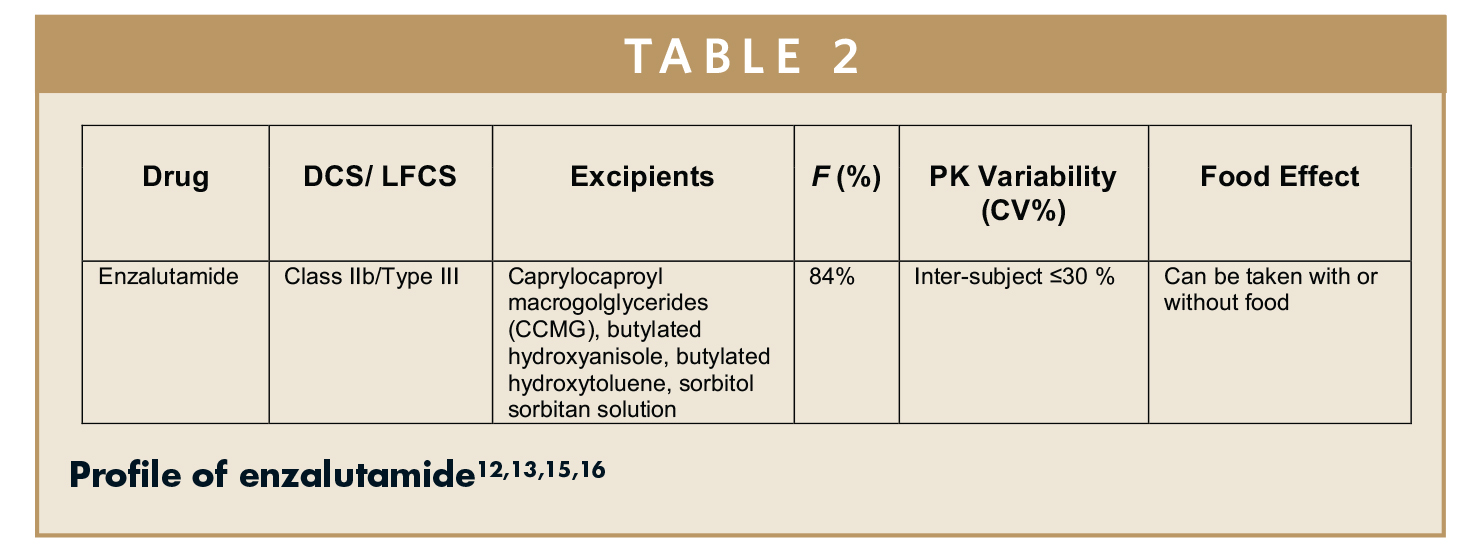

The case of enzalutamide represents a good example of how a lipid-based system can provide benefits over a solid dose form of the drug or the drug in suspension. Enzalutamide is a fully synthetic, non-steroidal antiandrogen agent, approved for the treatment of castration-resistant prostate cancer.10

An ongoing Phase II trial indicates that it may also have potential for treatment in triple-negative breast cancer.11 According to the DCS, enzalutamide would be classified as a Class IIb compound, which means that its intrinsic solubility limits its absorption.

In early non-clinical phases, the drug exposure levels of enzalutamide were lower when dosed in a solid dose form or in a suspension compared to formulations wherein enzalutamide was in a fully dissolved state.12 This supports enzalutamide being classified as a DCS Class IIb compound. In early studies, drug absorption was seen to be hindered by enzalutamide’s slow dissolution rate.12,13 This would appear to imply that enzalutamide is a DCS Class IIa compound, and particle size reduction technology could be employed. However, the SLAD of enzalutamide is 7.3 mg, and the administered dose is 160 mg. Therefore, particle size reduction alone is not likely to improve the dissolution rate for the required dose of enzalutamide to be fully absorbed, and another formulation approach should be considered given the compound is solubility-limited (DCS IIb). Based on its classification, DCS would suggest a lipid-based or solid dispersion formulation of enzalutamide would be the best formulation approach for enzalutamide. This proved to be the case as a lipid filled soft gelatin capsule was selected and developed as the market entry dosage for the product. The excipients of the commercial lipid-based fill formulation are shown in Table 2 and would be classified as a Type III lipid formulation according to the LFCS. Studies have also shown this commercial formulation has high bioavailability, low inter-subject pharmacokinetic variability, and a linear dose escalation from 30 mg to 600 mg.12 From a patient perspective, no significant food effect was observed, and the dose can be taken without regard to food.14

There are many benefits in using LBDDSs when formulating poorly soluble and poorly permeable drugs, and soft capsules for their delivery. In addition to overcoming solubility and permeability issues, they are well understood, widely accepted by both patients and regulators, and have a long history of large-scale manufacture and commercial success.

Formulation screening, development, scale-up, and commercial manufacture of LBDDSs are all activities where considerable expertise is required. If this experience is not available in-house, which often is the case, then choosing an outsourcing partner with experience and a proven track record is critical. As a general rule, selecting a partner that is able to carry out the whole spectrum of activities from formulation development through to commercial manufacture makes sense as this simplifies and speeds up product development cycle times by eliminating the need for work at multiple partners/sites and removing tech transfer steps required for ultimate commercialization of the product.

The costs of drug development have escalated greatly in recent years. The latest, 2016, estimate of the total cost of getting a new molecular entity to market, from the Tufts Center for the Study of Drug Development is $2.6 billion.17 This reflects not only the growing demands of the regulators for ever more studies to prove safety, but also the increasing complexity of the product types being developed.

Lack of drug solubility and permeability are two significant contributing factors to the return on investment from new drug launches reaching historical lows.18 However, today, it is possible to address compounds with difficult physicochemical properties and unfavorable absorption characteristics early on in the development process. By doing so during preclinical development, both costs and attrition rates can be reduced.



Lipid formulations have the longest commercial success track record among enabling technologies measured by the number of New Drug Applications (NDAs).3 There are numerous benefits for using LBDDSs for poorly soluble and poorly permeable drugs, and the use of soft capsules as a delivery platform for their successful commercialization. A high-quality, reputable industry partner is desirable for the successful, efficient development, scale-up, and commercial manufacturing of soft capsules.

It is particularly important to choose a partner that has the experience and knowledge to help design an optimal lipid formulation based on the specific physicochemical properties of the API during the preclinical stages. Additionally, it is advantageous to use the same partner that does the development for scale-up and commercial manufacturing because the process is considerably simplified when all activities needed for a successful product are performed within the same partner entity or network. Only a handful of contract development and manufacturing organizations are capable of taking a new compound from preclinical development through commercial-scale cGMP manufacturing. As of this time, only five soft capsule manufacturers have successfully navigated the approval of soft capsule NDAs or supplemental NDAs (sNDA). Of the five, only three manufacturers have successfully submitted and received approval of soft capsule NDAs. The table below illustrates the number of supported NDAs and sNDAs by company.
