BIORESORBABLE POLYMERIC MATRICES - Convergence of Materials Science & Drug Development to Treat Challenging ENT Diseases


Sustained and controlled delivery of medicine offers impor­tant benefits in terms of longer duration of action, reduced dosing frequency, and improved patient comfort and compliance. Sev­eral strategies are available to modify release of active substances with a goal of improving patient outcomes; however, these strate­gies are not applicable to all diseases or areas of the body for delivery, leaving significant unmet needs. For example, it has been challenging to achieve local therapeutic action at tissues deep in the ear, nose, and throat (ENT) passages where inflam­mation and infection are the drivers of chronic symptoms.

Polymeric microspheres have been used for years for con­trolled delivery because of their ability to encapsulate different types of drugs, biocompatibility, high bioavailability, and sus­tained drug release characteristics.1 While microspheres remain an important option for sustained delivery, therapeutic applica­tions are limited to those requiring systemic distribution of the drug. Strategies to localize sustained drug release include the use of foams impregnated with drug product. An example of this ap­proach is a foam-based extended-release formulation of ciprofloxacin for use in ear infections.2 While this once-daily dos­ing of foam eliminates the need for multiple doses of messy ear drops, use of foams has not been demonstrated to achieve long-term delivery of a therapeutic to a target organ.

Drug-eluting stents (DESs) are drug-device combinations de­ployed to localize drug delivery in the treatment of obstructive ar­terial disease. These stents consist of three main parts: a metallic platform, a polymeric coating, and an active pharmaceutical agent incorporated into the coating.3 High rates of in-stent restenosis associated with bare-metal stents led to development of DESs, which were designed to mitigate the injury created by implantation of the stent.4 In other words, the goal of the drug in DESs is to make the device – the stent – work better.

As our research team explored ways to deliver drugs and treat disease in a targeted, long-term manner for specific ENT conditions, we sought to move beyond the limitations imposed by technologies such as microcarriers and foams. At the same time, we envisioned an approach that was, in essence, the reverse of a DES. We didn’t look for a drug to make an existing device better, rather, we wanted to develop an implantable material with a specific set of characteristics that offered the potential to make a broad range of therapeutics more effective.

We ultimately found a unique way to solve a unique problem at the intersection of material science and drug formulation chemistry.


When considering an advanced material and design for an implant capable of localized, long-term delivery of a therapeutic, the list of prerequisites is lengthy. As a starting point, we consid­ered the nature of the soft tissues we would be targeting and knew the implants needed to mimic the strength and elasticity of the native tissue and also have shape-memory properties. These fea­tures would allow the implant, and hence the drug, to remain in contact with the tissue surface even as the tissue changes and re­models. The implant material also had to be resorbable and bio­compatible.

Development of a shape-memory material that is also bioresorbable re­quired a unique composite design as ex­isting approaches offered limited strength. The bioresorbable, composite polymeric implants with shape-memory properties that Lyra has developed are described in Nature Materials.5

The shape-memory matrix consists of variants of poly(glycolic) acid that are braided and coated with a crosslinked elastomer of poly(glycolide-co-caprolac­tone). The elastomer coating delivers higher mechanical strength in terms of compression, expansion, and elasticity compared to braids without the coating. The elastomer is cured on the braid at the fully expanded diameter, providing a mechanism for the implant to self-expand to its fabricated diameter by constraining the points of intersection of the braid. The scaffolds were shown to be biocompatible and highly resorbable in animal studies.

This novel approach to coupling strong materials with elastomeric, shape-memory materials opened the opportunity for the long-term targeted delivery of drugs via bioresorbable constructs that mimic the properties of native soft tissue.


At Lyra Therapeutics, we have inte­grated this technology based on advanced materials science with extensive expertise in drug development and formulation chemistry to create our XTreo™ platform. Foundational components of the XTreo platform are outlined below.

A biocompatible mesh design opti­mizes surface area for drug release while maintaining underlying tissue function through an open cell design. The mesh is composed of bioresorbable polymers that are pliable to maximize patient comfort.

An engineered elastomeric matrix (Figure 1) dynamically adapts to target anatomy. Adaptive elastic tension gives it shape-memory to resist deformation, which is essential for ensuring persistent positioning in the target location. The elas­tomeric matrix works in conjunction with the underlying mesh to exert out- ward pressure at the target location, keeping it in place as tissue remodels. Resorption of the matrix can be con- trolled to effectively tailor the therapeutic to different indica­tions; it can be designed to remain intact or be resorbed within a specific time period. A fine-tuning process effectively bal­ances the pace of resorption and self-expansion.

Lyra Therapeutics’ engineered elastomeric matrix has advanced physical properties to dynamically adapt to target anatomy.

A versatile polymer-drug complex is potentially amenable to continuous, pro­longed drug release across a wide range of drugs for different therapeutic applica­tions. With proprietary bioresorbable poly­mer-drug formulations, the platform can be used to customize the controlled-re­lease of drugs for many chronic dis­eases.Our current pipeline of therapeutics target tissues deep in the ear, nose, and throat (ENT) passages and are designed to deliver continuous drug therapy for up to 6 months following a single non-inva­sive, in-office administration.


Selection of chronic rhinosinusitis (CRS) as our first indication was driven by significant unmet clinical need (Figure 2). CRS is one of the most prevalent chronic diseases, affecting at least 14 million in the US alone.6 CRS is diagnosed after per­sistent and severe symptoms, which in­clude nasal congestion, drainage, reduced or lost sense of smell, and facial pain and pressure, have persisted for 3 months or more. CRS symptoms can lead to sleep disturbances, daytime fatigue, depression, and anxiety, severely impacting a person’s well-being and quality of life, both person­ally and professionally. A typical CRS suf­ferer misses 18 workdays per year, has a 36% reduction in on-the-job effectiveness, suffers a 38% loss of productivity, and often withdraws from daily personal activ­ities.7

Conventional CRS treatments are in­tended to reduce mucosal swelling result­ing from underlying inflammation, reduce existing nasal polyps and promote sinus drainage. CRS sufferers typically start with over-the-counter remedies and if those don’t work, may move to a topical in­tranasal or oral corticosteroids. Topical nasal steroid sprays are not designed to reach the site of inflammation deep within the nasal passages, and systemic exposure to oral steroids also presents safety con­cerns for these patients.

About 10% of CRS patients develop nasal polyps, which are benign, tear-shaped masses that form in sinus cavities. Currently, there are no FDA approved drug therapies for the 90% of CRS patients who do not have polyps.

Overall, 50% of the 8 million CRS pa­tients in the US fail attempts to manage CRS with medication.8 These patients may be referred for sinus surgery, which can be costly and uncomfortable. A small minority of patients proceed with sinus surgery, and those that do often require follow-up revi­sion surgeries. The majority of CRS pa­tients still require medical management after surgery.

The unmet need in CRS is significant as none of the current treatment options offer the sustained solution required for long term management of this disease.

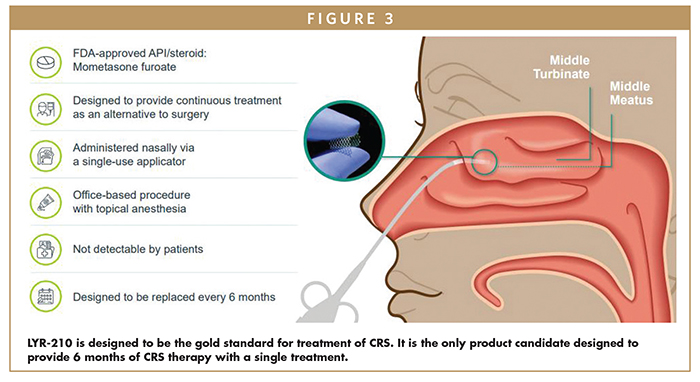

LYR-210 is an anti-inflammatory im­plantable drug matrix based on our XTreo platform designed to deliver mometasone furoate, a potent anti-inflammatory agent, consistently and locally to the inflamed mucosal tissue of patients with CRS for up to 6 months from a single treatment (Fig­ure 3).

Click image to enlarge

In the Phase 2 LANTERN study, LYR-210 demon strated rapid and durable im­provements in symptom severity for patients both with and without nasal polyps after a single ad ministration. At 4 weeks, 70% of patients showed clinically meaningful improvement, and by 24 weeks 100% of patients achieved mean­ingful symptom improvement. Further­more, approximately 50% of CRS patients treated with LYR-210 experienced durable symptom improvement 6 months after re­moval of the matrix. The lack of a strong rebound in CRS symptoms post-treatment after removal of the matrix may indicate the potential for longer-term benefit for some patients.

Another long-acting anti-inflamma­tory implantable drug matrix, LYR-220, is in development for CRS patients who have undergone a prior sinus surgery but con­tinue to have persistent disease. Sinus sur­gery results in an enlarged nasal cavity, and LYR-220 employs an oversized matrix to ensure a proper fit.

An applicator designed for the spe­cialized biology and contour of the ENT space is used by the physician to adminis­ter LYR-210 and LYR-220 in a fast, non-in­vasive, in-office procedure. The flexible matrix maintains maximal contact with the irregular sinonasal anatomy and dynami­cally expands to the target anatomy, pro­moting continuous apposition to the surrounding mucosa for efficient and con­sistent local corticosteroid delivery while being unobtrusive to patients.


The XTreo platform represents a unique and powerful convergence of ma­terials science, drug development, and formulation chemistry, enabling the local delivery of medication to anatomical spaces not accessible by conventional therapeutic approaches. The remarkable flexibility of the platform opens possibilities to explore additional indications within the ENT space, such as allergic rhinitis, olfac­tory dysfunction, ear conditions, and sinus-related rare disorders. Because this versatile platform enables modification of the form factor, the drug and its elution profile, we can explore indications beyond the ENT space as well, such as nasal de­livery for CNS disorders. Lyra’s XTreo plat­form has potential in a number of indications where long-term delivery would improve local bioavailability and enhance efficacy and safety.
