ABSTRACT

Depression affects an estimated 5% of adults globally, and in the US, depression diagnoses have risen 33% since 2013; twelve-month depression prevalence is 10.7%; and healthcare spending by a patient suffering from depression is twice that of the average patient.¹ Unfortunately, less than one-third of patients respond adequately to first-line serotonin reuptake inhibitor an­tidepressants (eg, Prozac®) therapy^.2 Current next-line options are limited by modest efficacy and safety concerns.³ For patients who do not respond adequately to first-line antidepressants, new next-line options are urgently needed.

Quotient Sciences (Nottingham) partnered with Evecxia Ther­apeutics to support the development of EVX-101, an investiga­tional adjunctive drug for depression and obsessive-compulsive disorder (OCD) responding inadequately to first-line antidepres­sants. EVX-101 is a first-in-class drug acting via Serotonin Syn­thesis Amplification. Using Quotient Sciences’ Translational Pharmaceutics® platform, the team developed and manufactured the drug product and conducted an adaptive clinical study to op­timize performance against the target product profile.

A gastro-retentive (GR), bilayer modified-release (MR) EVX-101 tablet formulation combining 5-hydroxytryptophan (5-HTP) — the natural immediate serotonin precursor — with low-dose carbidopa (enhances 5-HTP’s bioavailability) was developed and manufactured for clinical testing. This formulation approach ef­fectively addressed the inherent challenges of 5-HTP’s short half-life, narrow absorption window, and low bioavailability.

The two-part clinical study involved a sipping protocol to confirm the GR strategy and to define the carbidopa dose range (Part 1) and a formulation optimization study using a 2-dimen­sional design space to vary the release rate of the two drugs and the GR retention time (Part 2). The formulations were radiolabeled with not more than 1 MBq 111indium allowing gamma scintig­raphy to be used to assess in vivo formulation performance. The optimized formulation was then progressed to a Phase 1 pro­gram, which included single ascending dose (SAD) and multiple dose titration (MAD) study in healthy volunteers treated with esc­italopram.⁴

The program achieved significant time savings compared to conventional formulation optimization strategies with two Phase 1 trials completed in a timely manner. The following reviews the Phase 1 study design and clinical outcomes, leveraging data pre­sented at the 2023 AAPS Annual Meeting.^5,6

INTRODUCTION

Inadequate response to antidepressant treatment is a signif­icant issue for many patients with depression.2,3 Enhancing brain extracellular serotonin (5-HT) levels beyond those produced by serotonin reuptake inhibitors may treat depression more effec­tively.⁷ Adjunctive treatment with 5-hydroxytryptophan (5-HTP), the natural precursor to 5-HT, can amplify brain serotonin.⁸ How­ever, 5-HTP absorption is restricted to the upper intestine, bioavailability is low, and 5-HTP has a short half-life (t½), making 5-HTP a poor drug.

To overcome these pharmacokinetic (PK) limitations, a gas­tro-retentive (GR) modified release (MR) formulation was required to maximize the absorption window for sustained delivery exposure.  Carbidopa inhibits amino acid de­carboxylase, the enzyme that converts 5-HTP to 5-HT in the intestine, resulting in decreased first-pass metabolism and in­creased 5-HTP bioavailability. The effective dose of carbidopa was unknown. The goals of each part of the study were as fol­lows:

Part 1: administering 5-HTP as a sip­ping protocol to simulate GR formula­tion input and to demonstrate proof of concept (PoC) for the GR formulation. Additionally, the flexibility to adjust car­bidopa dose to define the dose range for the GR formulation was considered.

Part 2: developing and optimizing EVX-101 as a novel GR MR 5-HTP/car­bidopa bilayer tablet formulation and conducting PK and safety assessments. The target product profile (TPP) was to achieve a twice a day (BiD) dosing reg­imen with a steady state Cavg (ssCavg) of >100 ng/mL.

Quotient Sciences’ Translational Phar­maceutics platform was used to conduct the study, integrating drug product formu­lation development and GMP manufactur­ing with clinical dosing activities.

METHODS

The conventional paradigm for the development of GR dosage form is to screen a range of prototypes in preclinical species, usually dogs, and use this data to select two or three fixed compositions to manufacture and subsequently dose in a human PK

study. The inherent risk of this model is the acknowledged lack of pre­dictability of animal bioavailability to that which might be expected in humans. For GR products, this is particularly true given the significant physiological and anatom­ical differences between species.

When Translational Pharmaceutics is applied in drug product optimization, mul­tiple formulation technologies or proto­types can be assessed during a clinical study. Formulations are then optimized based on clinical data, addressing the issue of poor preclinical predictability. Small batches are manufactured immedi­ately prior to dosing, saving time in formu­lation scale up and stability data generation. Interim data reviews after each dosing period assess safety, tolera­bility and PK to determine the next technol­ogy or prototype to be manufactured and evaluated, typically on a 2-3 week cycle time.⁹

In Part 1, 12 healthy subjects were dosed in a 5 period sequential study, with each subject receiving a fixed dose (250 mg) of 5-HTP as an immediate release (IR) bolus dose, a sipping regimen (divided into 10 aliquots administered over a 9-hour period) and 5-HTP with three differ­ent dose levels (0.625 mg, 2.5 mg, and 10 mg) of carbidopa as sipping regimens. Both drug products were administered as solution formulations.

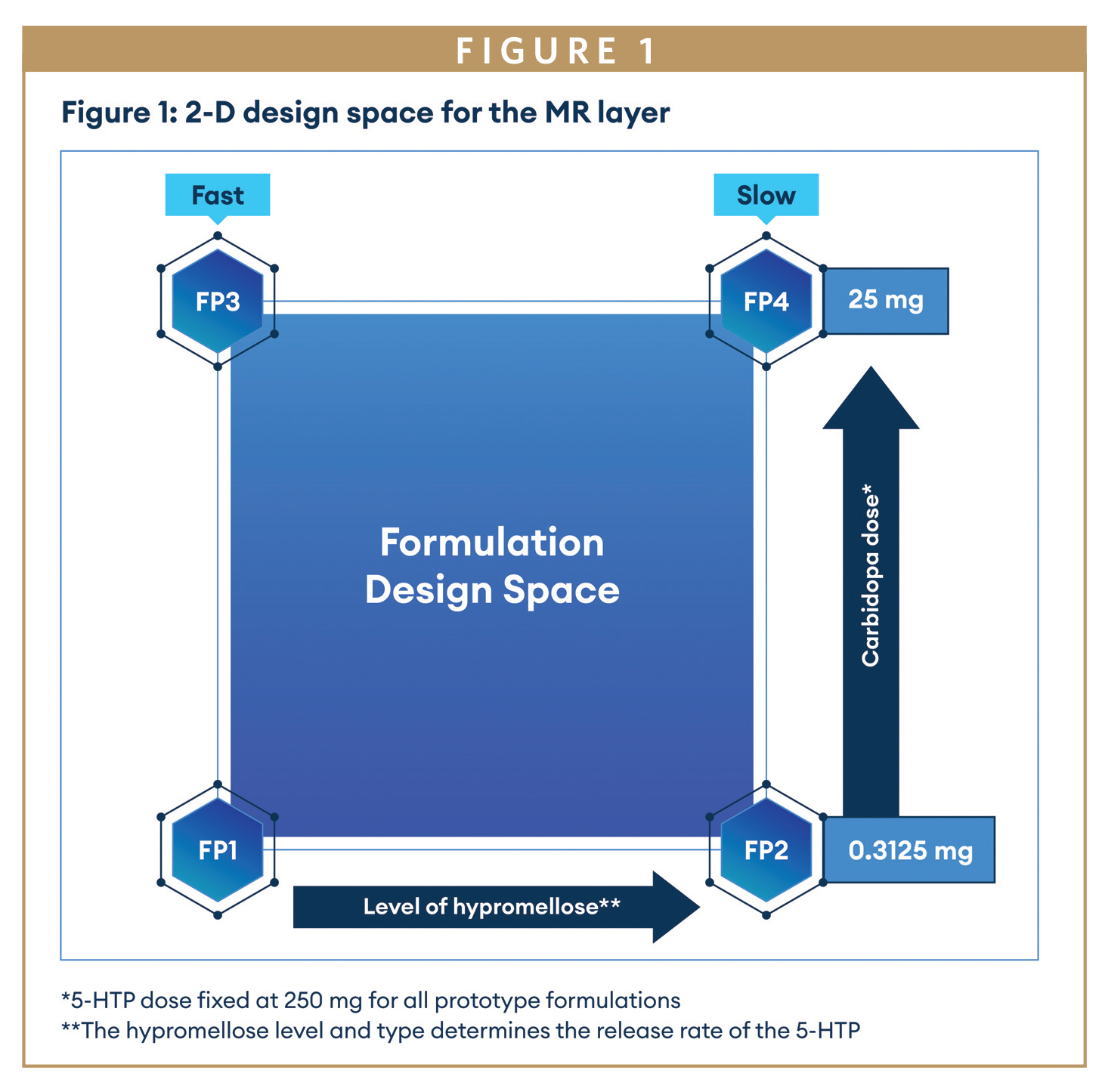

In Part 2, a new cohort of 16 healthy subjects received five sequential dosing periods. Quotient Sciences developed a bilayer GR/MR tablet containing a fixed 5-HTP dose (250 mg) and a two-dimen­sional design space (Figure 1) to enable variations in carbidopa dose (0.3125 mg – 25 mg) and the level of hypromellose (K4M, 7%-18%) and K100M (0%-25%) to control release rate of 5-HTP and car­bidopa (target 80% release 8.5 to 12 hours. The formulations were radiolabeled with 111indium, allowing gamma scintig­raphy to be used to assess in vivo perform­ance based on gastric emptying (GE) time, gastrointestinal (GI) transit parameters, and initial and complete tablet disintegra­tion (ITD and CTD). The carbidopa dose-response relationship to 5-HTP exposure was also assessed. In periods 1-4 subjects received GR prototype formulations in the fed state following a high fat/high calorie breakfast, with period 5 dosed in the fed state following a moderate fat/moderate calorie breakfast.

For both study parts, interim decisions occurred between dosing periods, whereby PK, safety, and scintigraphy data (Part 2 only) were reviewed to assess for­mulation performance and decide what formulation prototype to dose in the sub­sequent period.

RESULTS

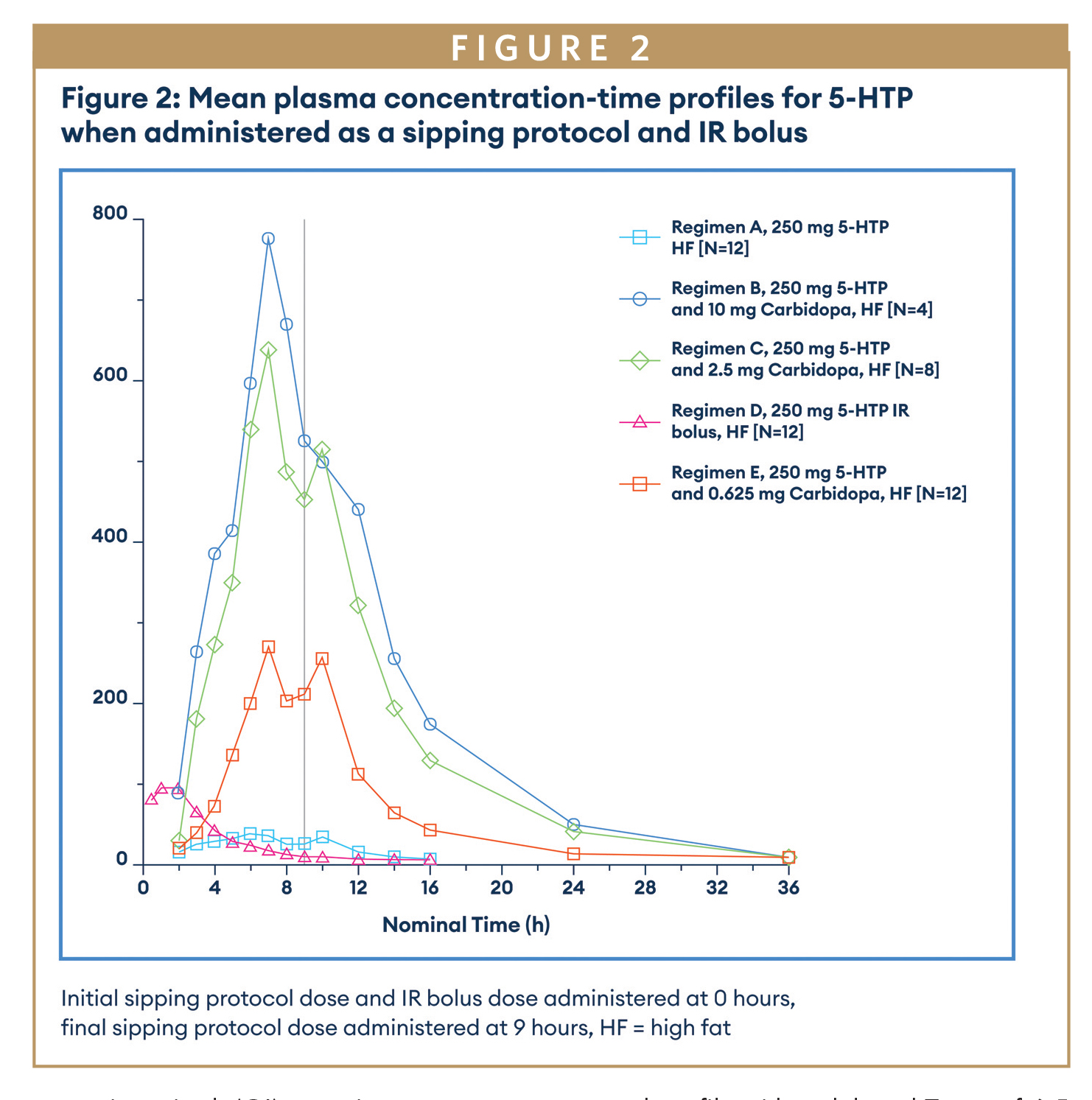

When 5-HTP was delivered as a sip­ping protocol in Part 1, it gave the ex­pected profile with a delayed Tmax of 6.5 hours compared to the bolus IR dose Tmax of 1 hour and also reduced exposure. Carbidopa had the anticipated effect on 5-HTP exposure (Figure 2) increasing ex­posure and t½, with a 2.5 mg dose result­ing in a 16-fold increase in 5-HTP exposure. 10 mg carbidopa resulted in additional increases in 5-HTP exposure; however, there was a limited data set for the 5-HTP 250 mg and carbidopa 10 mg regimen due to subjects withdrawing due to adverse events (AEs), and hence the data should be viewed with caution. Car­bidopa plasma levels were only above the LLOQ (1 ng/mL) for the 10 mg carbidopa dose. Note, all the 5-HTP and carbidopa sipping regimens dosed, achieved or ex­ceeded the steady state target plasma con­centrations for 5-HTP. However, when switching to a GR formulation, the 5-HTP exposure is predicted to be lower than when compared with the sipping regimen data, and hence a wider dose range for carbidopa was anticipated to be required.

The data from Part 1 allowed the dose range for carbidopa to be set at 0.3125 mg to 25 mg for the GR prototype formu­lation to be dosed in Part 2 of the study. The PK profile achieved by dosing the sip­ping protocol with 5-HTP and carbidopa confirmed PoC for a GR formulation.

During the GR bilayer formulation de­velopment, it was observed that the order of the two layers being compressed can also affect MR layer’s surface area and the drug release rate. Hence, it is a critical fac­tor to achieve the desired release rate. When the bilayer tablets were pressed in the order of GR-to-MR, the drug release rate was faster and more sensitive to the polymers used in the MR layer. The bulk density of the GR layer was less dense compared to the MR layer. Therefore, the decision to compress the MR layer first was deemed suitable to improve the manufac­turability of the formulation. This finding is useful for development of bilayer MR tablet to achieve the required drug release pro­files and is also critical for downstream scale up process development as the se­quence of compression will impact on the release profile.

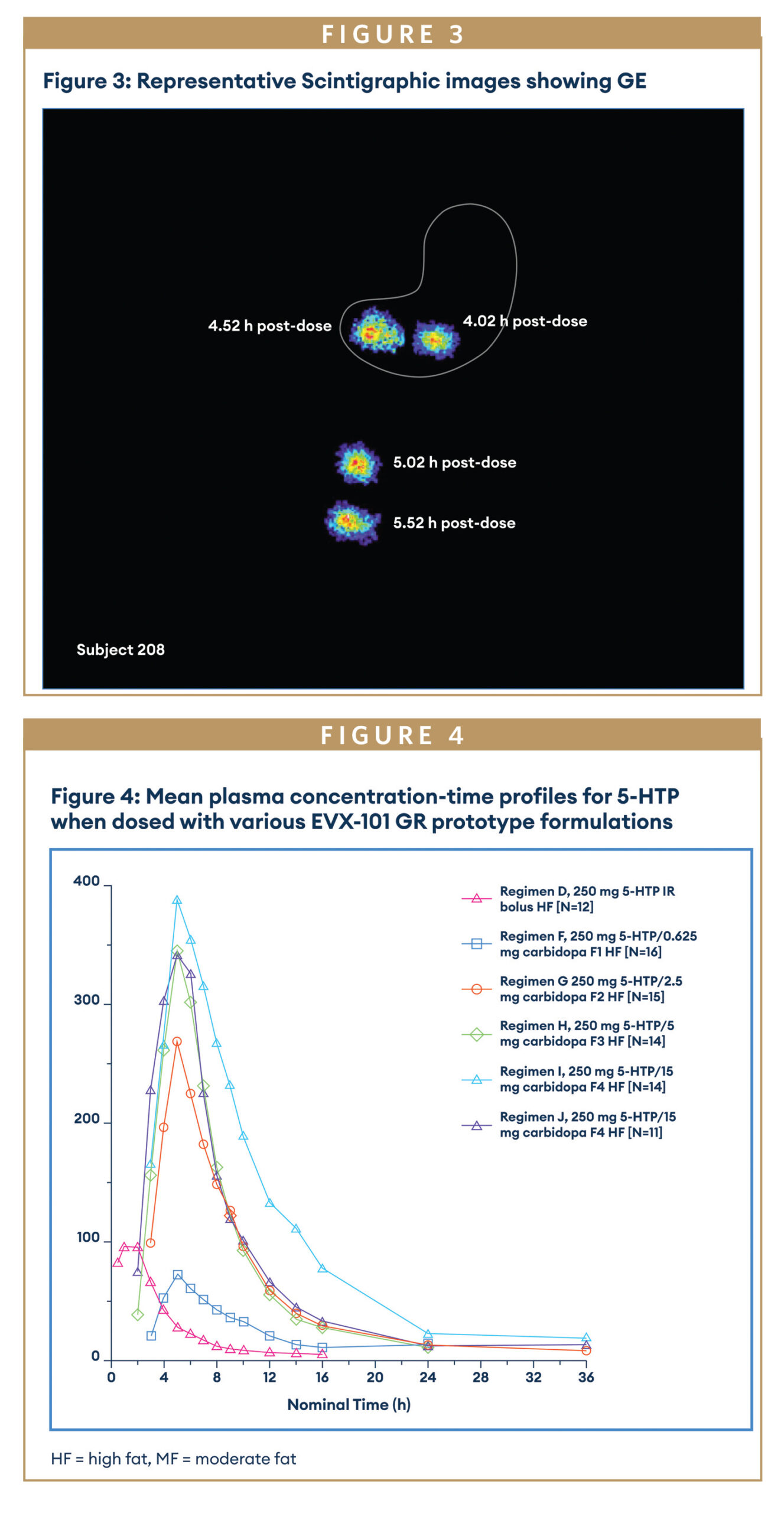

In Part 2, a new cohort of 16 healthy subjects each received GR prototype 1 (0.625 mg carbidopa and 250 mg 5-HTP, target release rate 80 % at 8.5 hours) in the fed state in period 1. GR prototype 1 produced a similar 5-HTP exposure to the 250 mg 5-HTP IR bolus dose in Part 1 of the study, suggesting a higher dose of car­bidopa is required to achieve the target 5-HTP exposure. Imaging of the radiolabeled formulation within the gas­trointestinal tract showed that GR formu­lation had a mean gastric emptying time of 5.863 hours, initial tablet disintegration of 0.691 hours, and complete tablet dis­integration at 18.501 hours. The in vivo imaging showed that adequate gastric re­tention was achieved from the GR formu­lation with the target 80 % release at 8.5 hours (Figure 3). Therefore, the release rate properties for 5-HTP (target 80 % re­lease at 8,5 hours) were fixed for future GR prototypes and exposure modified by changing the carbidopa dose level. GR prototypes with 2.5 mg, 5 mg, and 15 mg carbidopa were also dosed to explore the effect of increasing dose levels on 5-HTP exposure (Figure 4). Exposure with all these dose levels increased 5-HTP expo­sure, and it was predicted (using model­ling data) that these prototypes would meet or exceed the target ssCavg on mul­tiple dosing. Carbidopa plasma levels were only above the LLOQ (1 ng/mL) for the 15 mg carbidopa dose. The GR prop­erties (GE time) for all 4 GR prototype for­mulations dosed were consistent as assessed by scintigraphic imaging, and when a prototype was dosed with a mod­erate fat meal, gastric emptying time was reduced compared to when dosed with a high fat meal, as expected with the re­duced calorie and fat content, however the gastric emptying properties were still ac­ceptable for a BiD GR formulation dosing regimen.

SUMMARY

Translational Pharmaceutics allowed emerging clinical data to be used within a clinical study to validate PoC for a GR formulation, refine the carbidopa dose range, confirm MR release rate and GR properties, and identify an EVX-101 GR

tablet formulation to achieve the target profile of BiD dosing and ssCavg >100 ng/mL. The optimized EVX-101 GR tablet formulation was safe and tolerated within the target ssCavg range, and was recently used to successfully complete a single and multiple ascending dose study.⁴

REFERENCES

1. Hasin DS, Sarvet AL, Meyers JL et al. Epidemiology of Adult DSM-5 Major Depressive Disorder and Its Specifiers in the United States. JAMA psychi­atry. 2018; 75(4): 336-346.
2. Trivedi et al 2006 [https://pubmed.ncbi.nlm.nih.gov/16390886/].
3. Berman et al 2007 [https://pubmed.ncbi.nlm.nih.gov/17592907/].
4. Carpenter, D. et al, Poster T30. 2023 Annual Meeting of the American Society of Clinical Psychopharmacology.
5. 2023 AAPS Annual Meeting clinical poster.
6. v2023 AAPS Annual Meeting – hydrogel poster.
7. Jacobsen et al 2016 [https://pubmed.ncbi.nlm.nih.gov/27692695/].
8. Turner et al 2006 [https://pubmed.ncbi.nlm.nih.gov/16023217/].
9. DiMasi, J.A., Wilkinson, M. Ther Innov Regul Sci 54, 1453–1460 (2020).
